Sveconek Drawings

We gaurantee that our "Jaw Plates" and our "Securing Bracket" fit Kurt DX6, D688, 3600, D675 and most other 6" vises that use a similiar jaw plate bolt pattern.  **Please Note**  For other 6" vise's, our "Securing Bracket" clips under the vise ways and must clear the lead screw of the vise.  If you discover a  "Securing Bracket" fit issue, please give us a call.


Max Part Size's

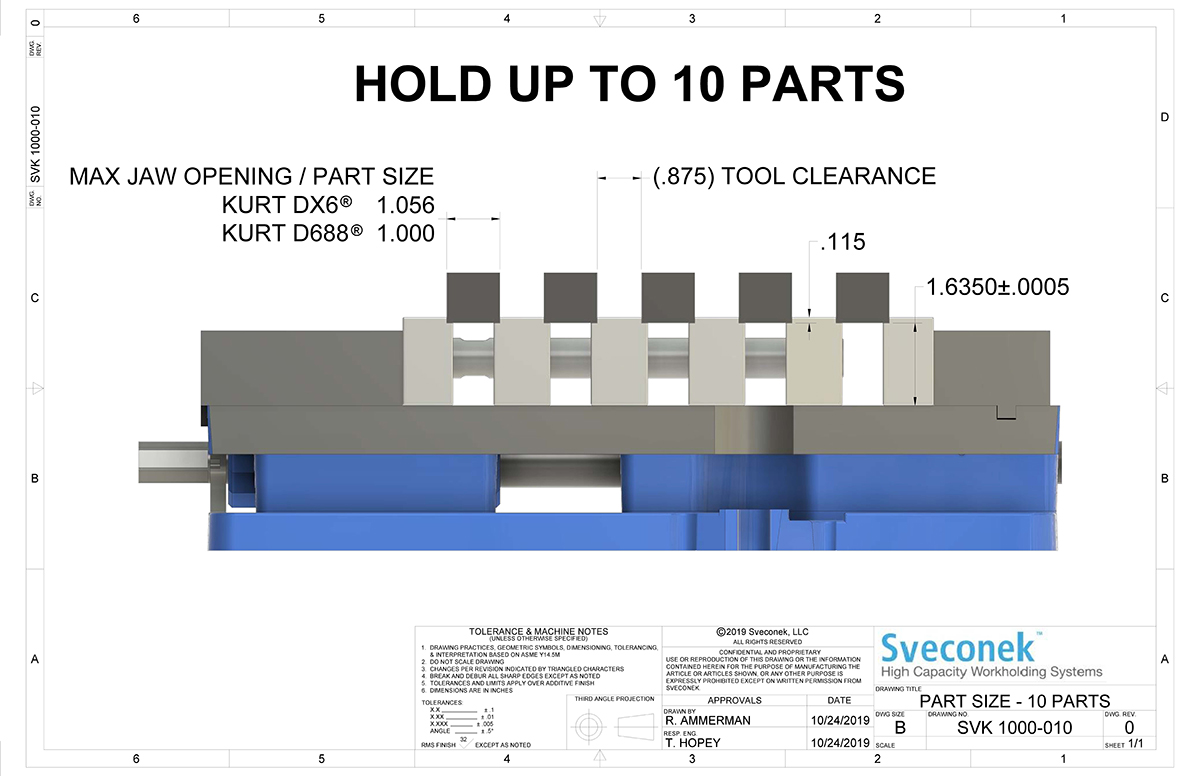

10 Parts view larger drawing

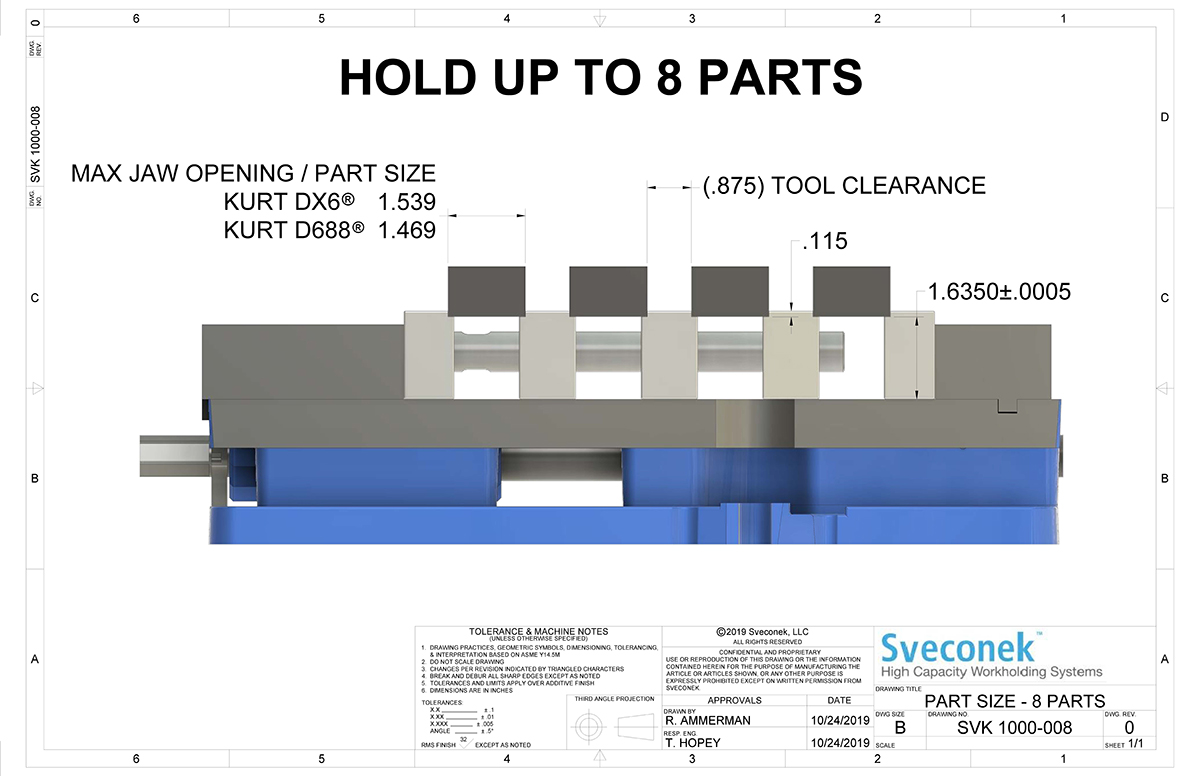

8 Partsview larger drawing

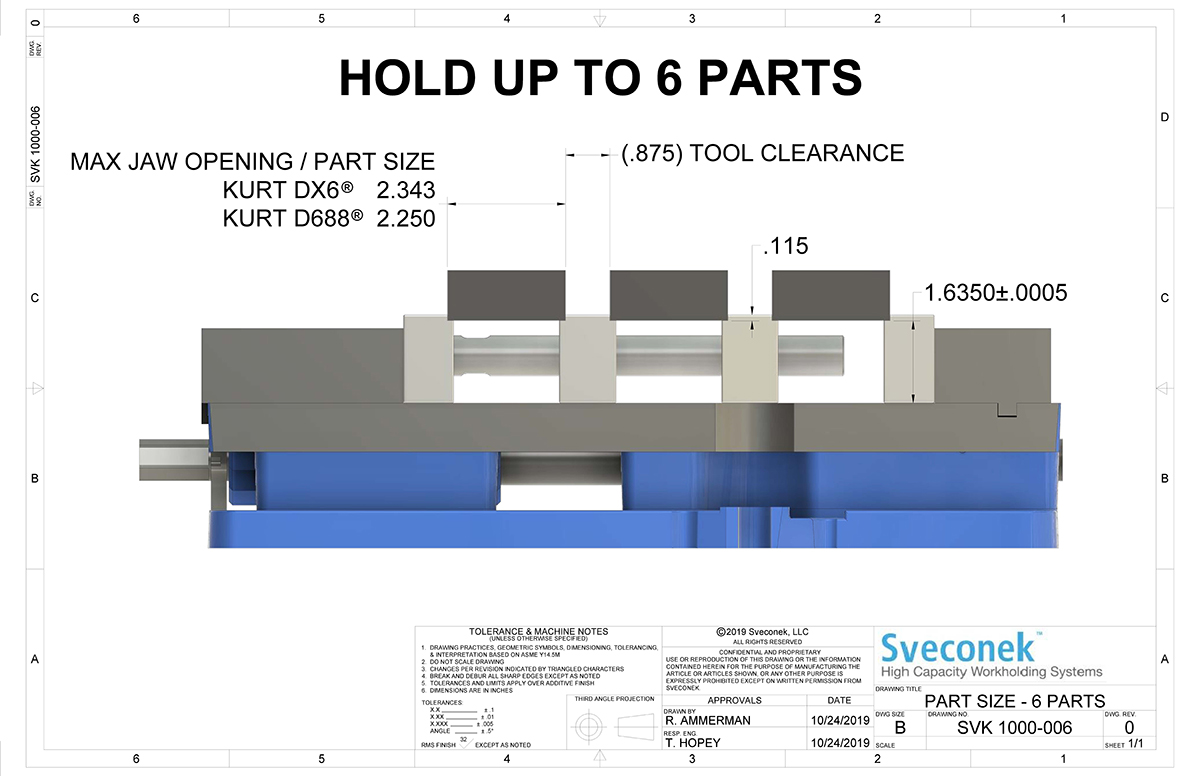

6 Parts view larger drawing

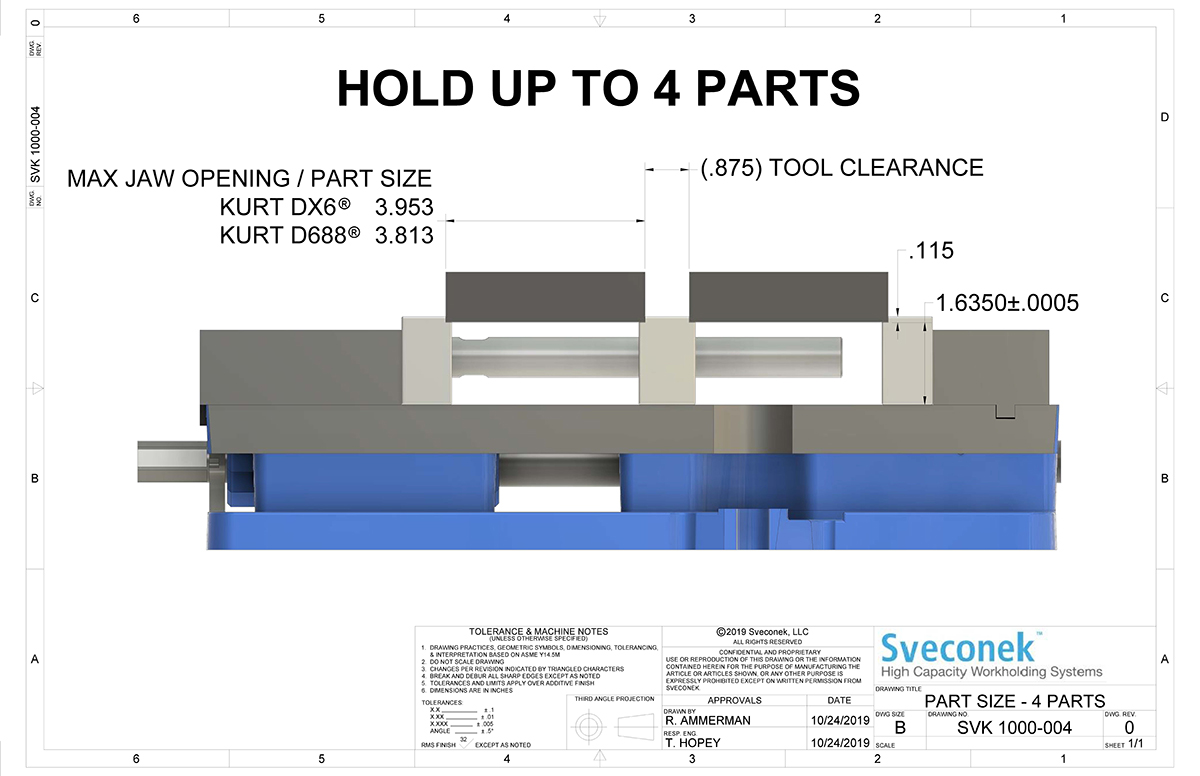

4 Parts view larger drawing
